Porsche S E-Hybrid HV Battery Upgrade | 51Ah CATL Cells for Panamera 970 & Cayenne 958
.د.ب3.999,00
-
Bahraini dinar - BHD
Porsche Panamera/Cayenne S E-Hybrid HV battery upgrade to 51Ah CATL cells at Coding-Center. Replace outdated Samsung 21Ah cells for 45km electric range. Compatible with 970/958 platforms. Plug-and-play, no BMS errors.Porsche S E-Hybrid HV Battery Upgrade 51Ah CATL Cells for Panamera 970 & Cayenne 958
51Ah CATL Cell Upgrade for Panamera 970 & Cayenne 958 — 45km Electric Range
Stop overpaying for outdated technology. When your Porsche Panamera 970 or Cayenne 958 S E-Hybrid suffers hybrid battery failure or degraded capacity, the factory solution is a brand-new battery — still built with original Samsung 21Ah cells from 2013. That is 11-year-old battery technology at a premium price.
The Coding-Center upgrade replaces those aging cells with modern 51Ah CATL Cells — same physical size, same voltage range, more than double the capacity. We retain your original sampling boards, voltage sensing wiring, and temperature sensors, so the Battery Management System (BMS) sees no difference. Everything functions exactly as factory — except now you enjoy 45km of pure electric range, matching the performance of newer Porsche hybrid models.
Compatible Vehicles
This upgrade is engineered for the first-generation Porsche plug-in hybrid platforms:
Porsche Cayenne 958 S E-Hybrid
The Problem With Factory Replacement
A new Porsche hybrid battery costs a significant premium — and delivers no performance improvement. Here’s why:
- Original Samsung 21Ah cells — cell technology from 2013, now outdated
- Limited electric range — typically 20-25km when new, degrading over time
- No capacity upgrade path from the manufacturer
- High replacement cost with zero modern technology benefit
The Coding-Center Upgrade Solution

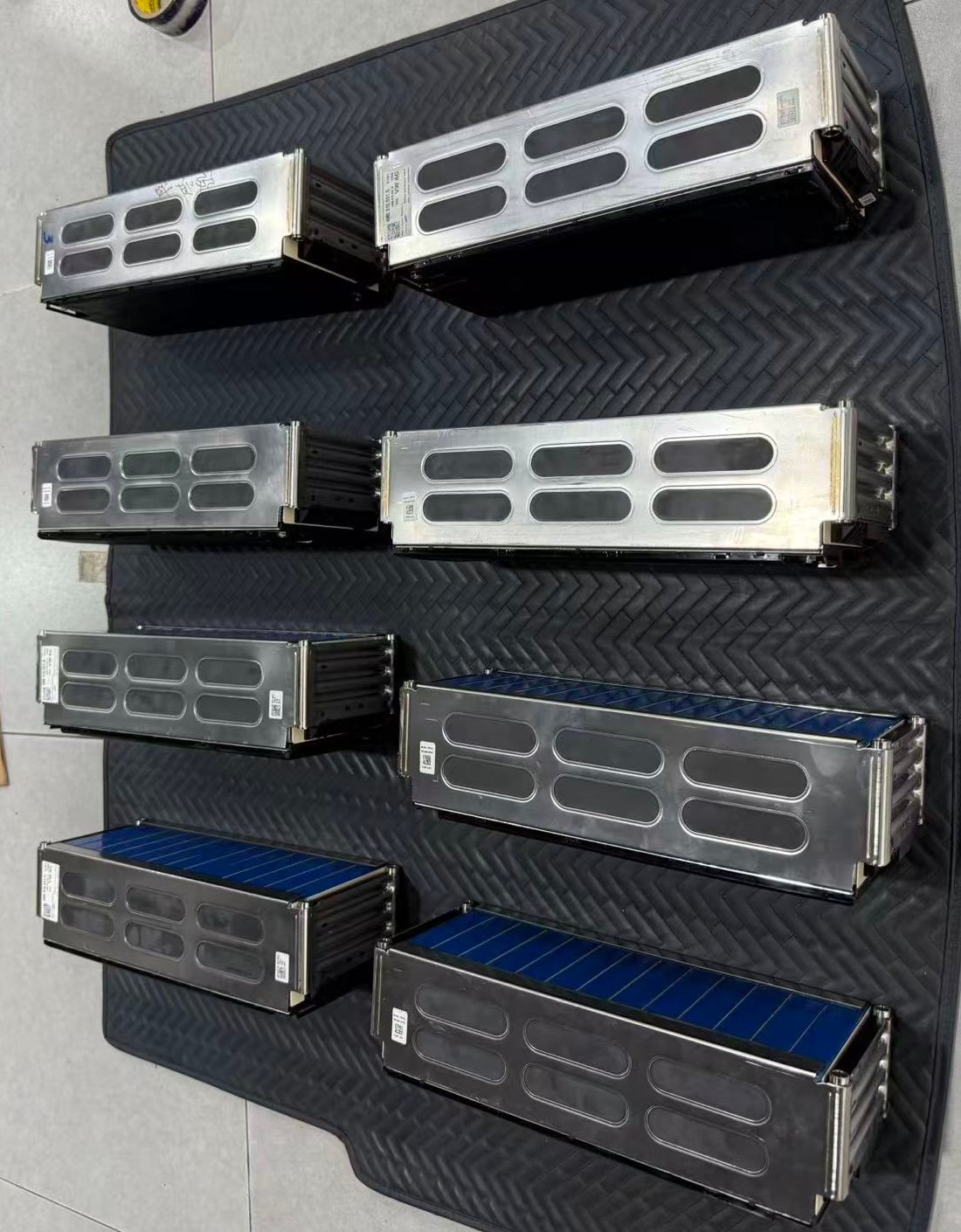

We replace the cell modules inside your existing high-voltage battery pack with cutting-edge CATL technology:

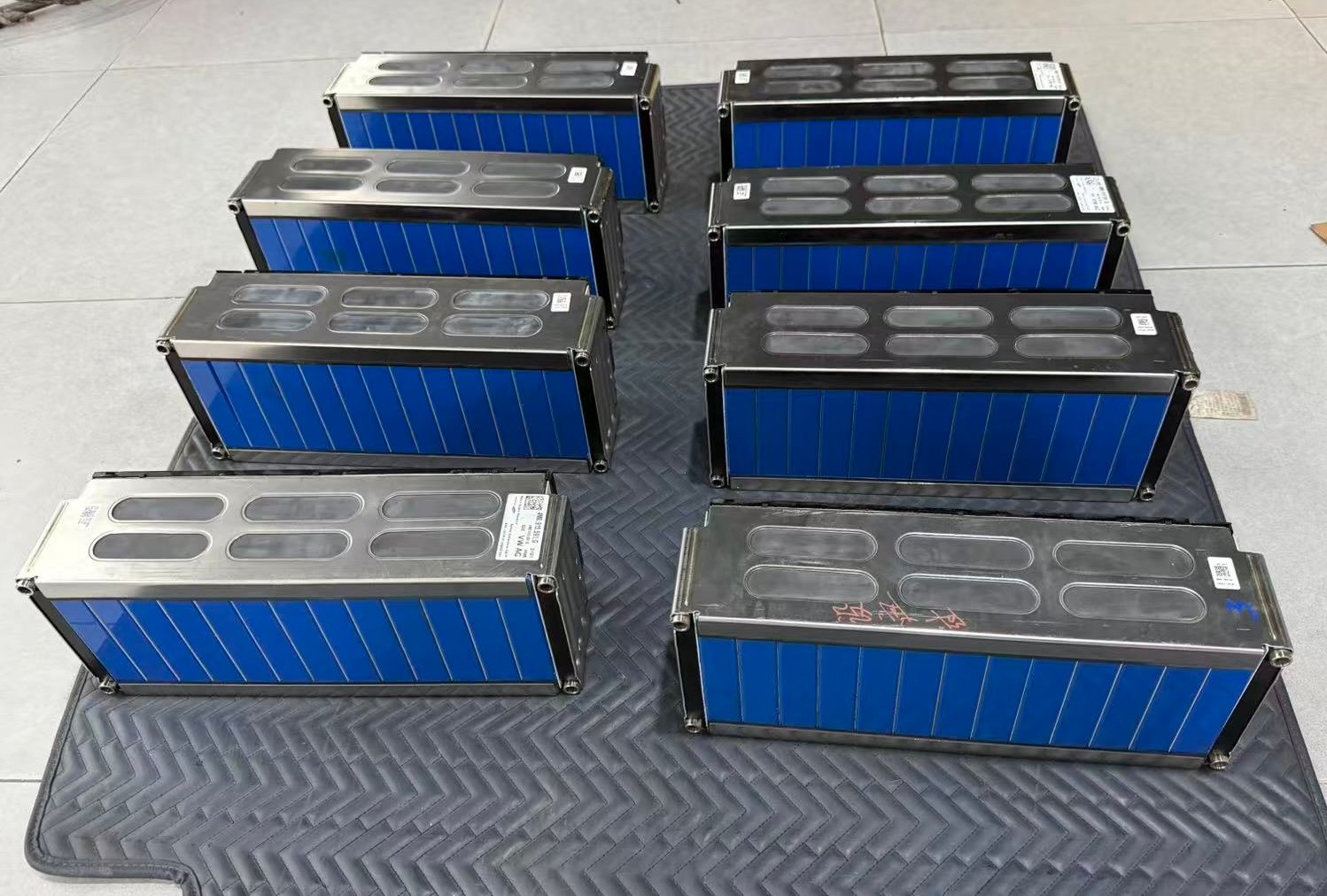

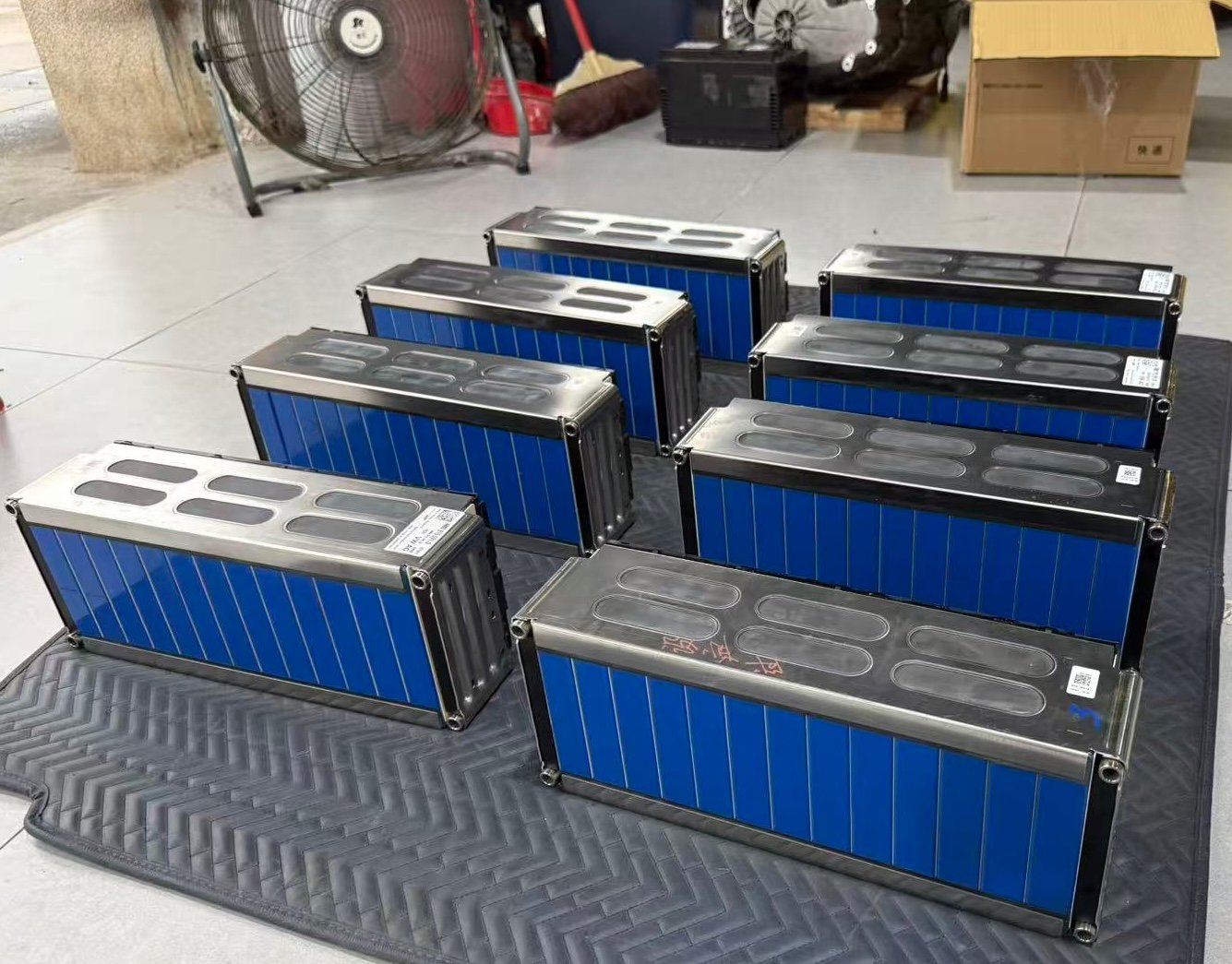

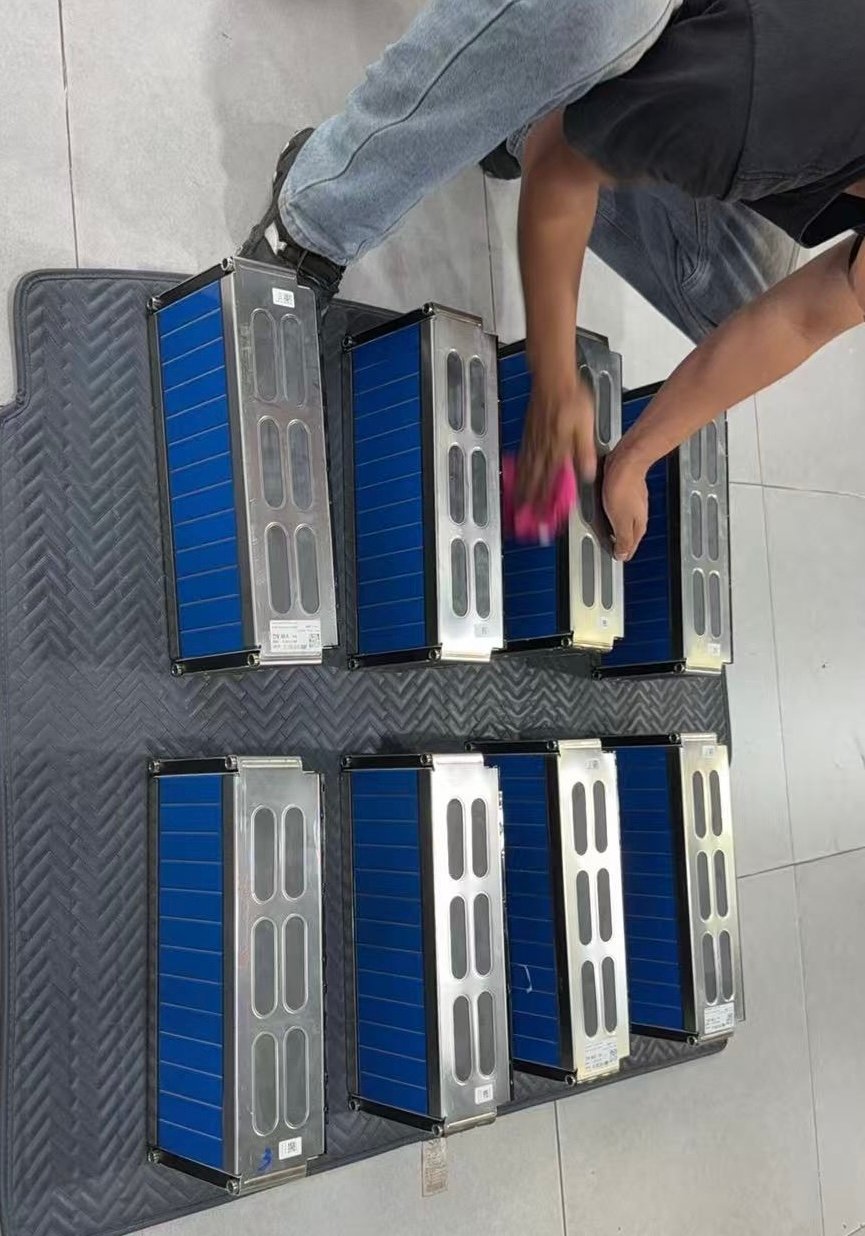

- 51Ah CATL prismatic cells — latest generation lithium-ion technology
- Same physical dimensions — direct fit within existing module housings
- Same voltage range — fully compatible with factory inverter and charging systems
- Original BMS integration — sampling boards, voltage sense wires, and temperature sensors reused
- Silent to the BMS — the management system detects no change in configuration
What Stays Original
To ensure full compatibility and safety certification, we preserve all factory control and monitoring hardware:
- Sampling boards (cell monitoring boards) — original Porsche/Bosch hardware retained
- Voltage sensing wiring harness — factory harness reused for accurate cell balancing
- Temperature sensors — original NTC sensors maintained for thermal management

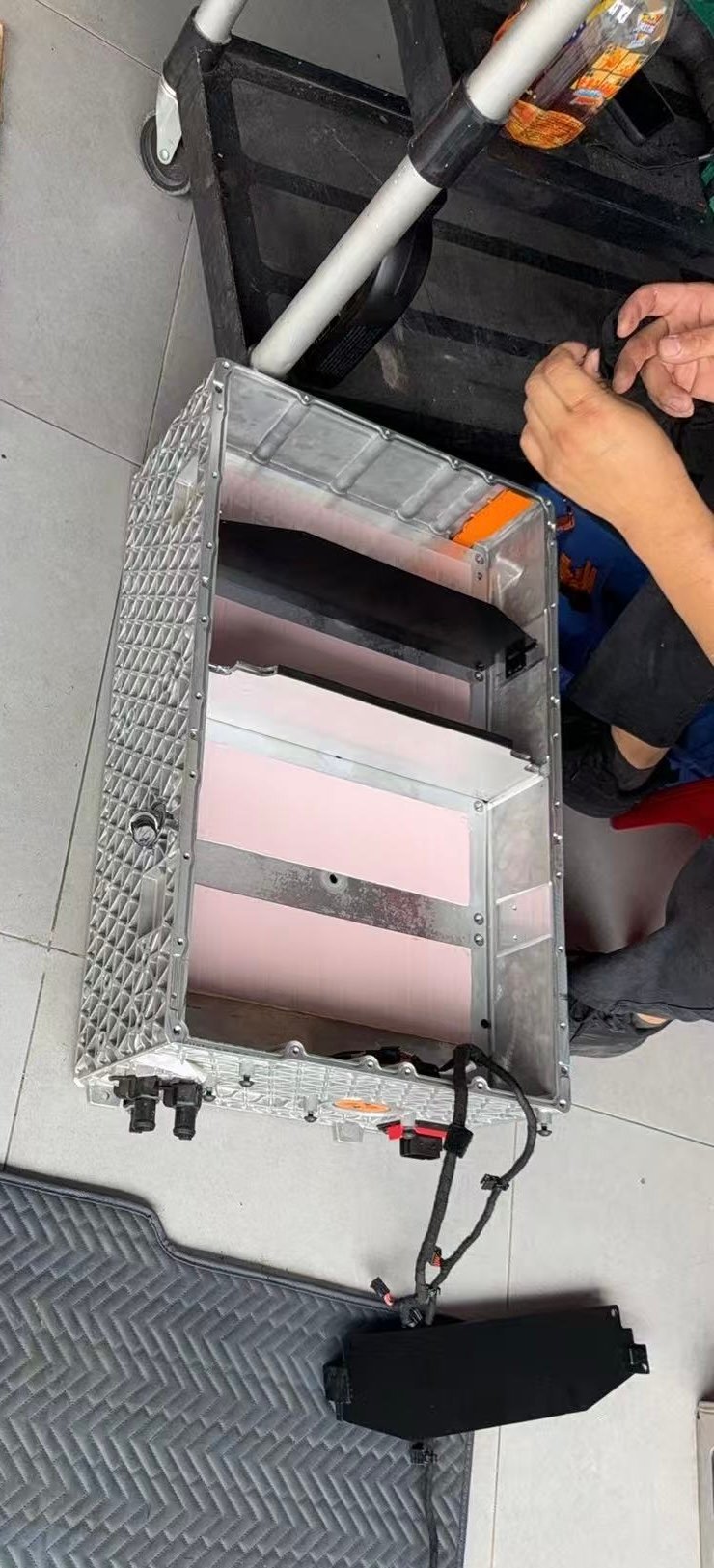

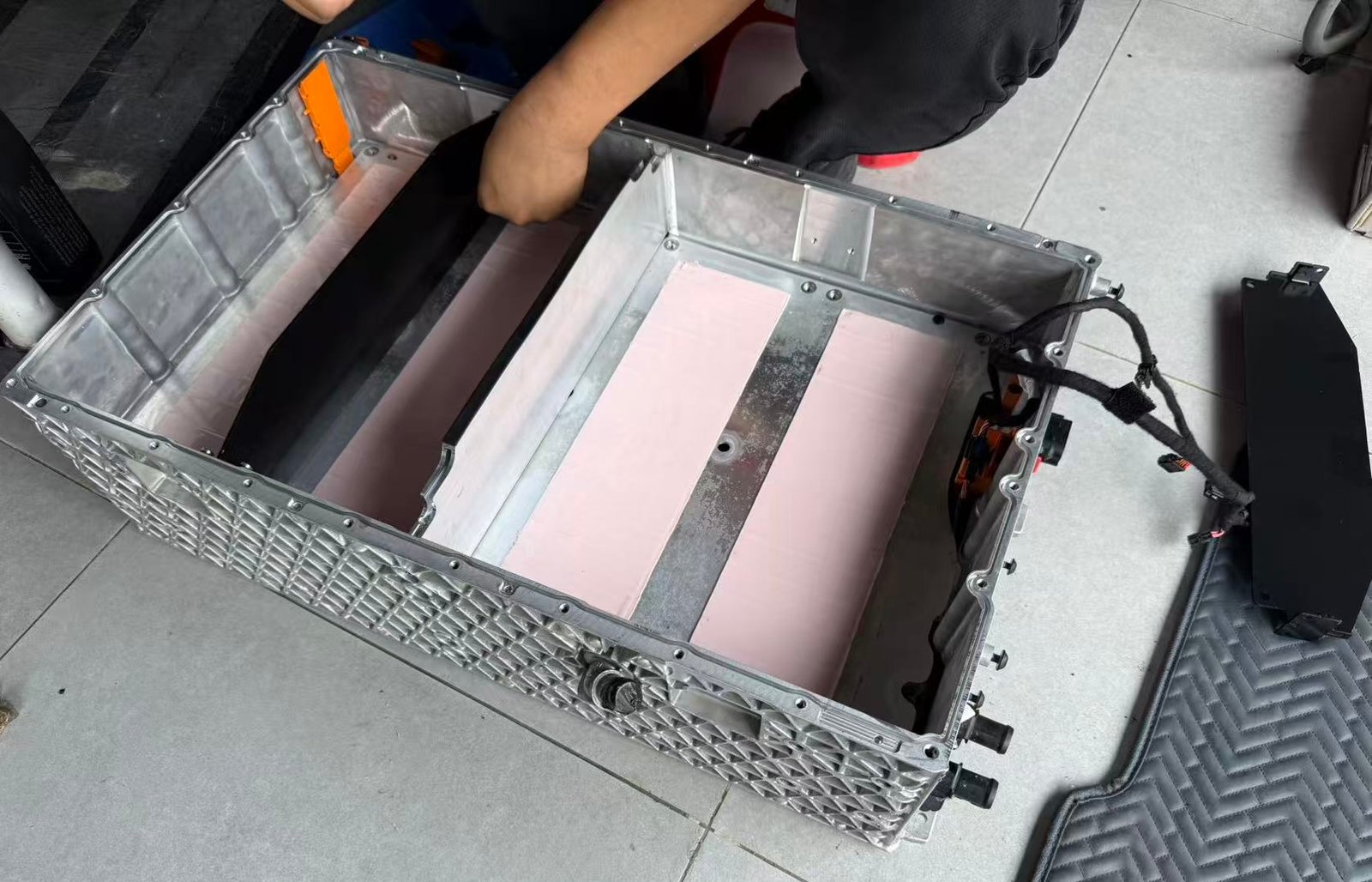

- Battery enclosure and contactors — factory HV housing and safety systems unchanged
Performance Comparison
| Specification | Factory Battery (Samsung) | Coding-Center Upgrade (CATL) |
|---|---|---|
| Cell Capacity | 21Ah | 51Ah |
| Cell Technology | 2013-era Samsung | Modern CATL prismatic |
| Electric Range | ~20-25km (when new) | ~45km |
| Physical Size | Factory dimensions | Same dimensions |
| Voltage Range | Factory spec | Identical to factory |
| BMS Compatibility | Native | Fully transparent |
| Warning Lights / Errors | None | None |
Why Coding-Center?
This is not a theoretical upgrade. We perform this procedure regularly in our workshop whenever a first-generation S E-Hybrid arrives with degraded hybrid battery performance. The process has been refined through real-world installation and validation:
- Proven in daily operation — tested on customer vehicles in real driving conditions
- Thermal management validated — CATL cells operate within factory temperature thresholds
- Charging behavior unchanged — onboard charger and regenerative braking function identically
- No software modifications required — the BMS calibrates to the new capacity automatically
Frequently Asked Questions
Will this trigger any error codes or warning lights?
No. Because we reuse the original sampling boards, wiring, and temperature sensors, the Battery Management System sees no difference in the pack configuration. The vehicle operates without hybrid system warnings, check-engine lights, or drivetrain faults.
How does the BMS handle the increased capacity?
The factory BMS calculates state-of-charge (SOC) based on voltage curves and current integration. Since the CATL cells share the same voltage range as the original Samsung cells, the BMS calibrates to the new capacity naturally through normal charge/discharge cycles. No coding or software changes are needed.
Can I install this myself?
No. High-voltage battery work requires specialized training, insulated tools, and safety protocols. Coding-Center performs this upgrade as a professional service. Contact us to arrange shipment of your battery pack or schedule installation at our facility.
Is this compatible with the newer Panamera 971 or Cayenne 9Y0?
No. This upgrade is specifically designed for the first-generation plug-in hybrid platforms: Panamera 970 and Cayenne 958 S E-Hybrid models. Newer platforms use different battery architectures.
What happens to my original Samsung cells?
Original cells are responsibly recycled through certified lithium-ion battery recycling channels in compliance with environmental regulations.
Does this affect my factory warranty?
Any modification to the high-voltage system may affect remaining factory warranty coverage on hybrid components. This upgrade is intended for vehicles outside of factory warranty or with already-failed battery packs. Coding-Center provides its own workmanship guarantee on the cell replacement procedure.
Product Specifications
| Feature | Details |
|---|---|
| Compatible Platforms | Porsche Panamera 970 S E-Hybrid, Porsche Cayenne 958 S E-Hybrid |
| Original Cell Type | Samsung 21Ah (2013-era technology) |
| Upgrade Cell Type | CATL 51Ah prismatic lithium-ion |
| Electric Range (typical) | Up to 45km |
| BMS Integration | Original sampling boards and sensors reused |
| Software Required | None — transparent to factory BMS |
| Installation | Professional HV-certified service only |
Double Your Electric Range
Stop accepting 11-year-old battery technology. The Coding-Center 51Ah CATL upgrade brings your Panamera or Cayenne S E-Hybrid into the modern era — with genuine 45km electric range and zero compromise.
Contact Coding-Center for Upgrade Pricing & Installation →
